SRAM Vs. DRAM: Understanding the Core Differences in Computer Memory

Explore the key differences between SRAM and DRAM, including their architecture, speed, cost, and distinct roles in computer memory, such as CPU cache and main RAM.

0 min read

SRAM Vs. DRAM: Understanding the Core Differences in Computer Memory

Memory stands as a fundamental component that shapes both system performance and responsiveness in computing environments. The kind of memory you choose to use creates a significant impact when you're gaming, multitasking, or handling complex data processing. Memory can generally be divided into two main classifications, which are volatile and non-volatile.

Two primary types of volatile memory include SRAM (Static RAM) and DRAM (Dynamic RAM).In this article, we will analyze the differences between SRAM and DRAM while explaining their functioning and advantages or disadvantages to determine their positions in the memory hierarchy.

Brief Overview of SRAM and DRAM

What is SRAM?

SRAM stands for Static Random-Access Memory. It uses flip-flop circuits composed of transistors to store data. As long as power is supplied, it retains information without needing to be refreshed. ]

What is DRAM?

DRAM stands for Dynamic Random-Access Memory. Each bit of data in DRAM is stored using a capacitor-transistor pair. The memory requires frequent refreshing because capacitor leakage prevents it from maintaining data.

What are the differences between SRAM and DRAM?

Feature	SRAM (Static RAM)	DRAM (Dynamic RAM)
Power Consumption	SRAM operates on the principle of constant current change through switches with no charges, like DRAM	DRAM consumes more power compared to SRAM
Number of transistors	SRAM requires six transistors for a single block of memory	A single transistor can form a memory block in DRAM
Refresh Requirement	No refresh needed	Requires constant refreshing
Speed/ Access Time	SRAM is an on-chip memory. Has less access time than DRAM, making it faster	DRAM, being an off-chip memory, has a longer access time than SRAM, making it slower
Power Consumption	SRAM operates on the principle of constant current change through switches with no charges, like DRAM	DRAM consumes more power compared to SRAM
Density	SRAM is less dense and less common	DRAM is denser compared to SRAM
Cost	SRAM is more expensive and less cost-effective than DRAM	DRAM is relatively cheaper and more cost-effective
Data Retention (with power)	As long as the power is on	Requires a refresh even with power on
Design and Build	The construction and design of SRAM are complex due to the use of multiple transistors	The design of DRAM is simpler, making it easier to implement. The capacity of a DRAM module can be six times that of an SRAM module with the same number of transistors
Charge Leakage	SRAM does not experience any charge leakage	DRAM uses a capacitor that generates a leakage current, making it dynamic. Due to the presence of a dielectric current in the capacitor, DRAM requires a power refresh circuitry
Storage Capacity	Lower storage capacity (1 MB to 16 MB)	High Storage capacity (4 GB to 16 GB)
Position in Device	SRAM is located on the processor or between the processor and the main memory of a device	DRAM is found on the device’s motherboard
Advantage	SRAM consumes less power and provides a fast access speed	DRAM has a low manufacturing cost and greater memory capacity
Disadvantages	SRAM has less memory capacity and a higher Manufacturing cost	DRAM consumes more power and has a slower access speed
Application	Used in the L2 and L3 Cache memory	Used in a computer’s primary memory

What is SRAM?

SRAM represents a RAM category where six transistors work together to maintain one bit of data. The transistors in this configuration maintain the bit value through a flip-flop setup, which requires power to operate. SRAM operates without capacitors, so it requires no refresh cycle, which results in decreased latency and quicker operational speeds.

SRAM image

SRAM provides better speed and reliability for applications needing rapid and repeated data access, which makes it ideal for CPU caches. The energy efficiency of SRAM during active operation benefits from its non-refreshing nature but suffers from higher static power consumption when idle compared to DRAM. The large number of transistors required for SRAM cells results in bigger cell sizes, which decreases density and increases manufacturing costs when compared to DRAM.

Characteristics/ Features

Volatile memory: SRAM is a volatile memory that loses data once the power is turned off, while reliably storing data for short periods at high speed in a powered state.
Faster than DRAM: Absence of refresh cycles enables SRAM to bypass lengthy delays in accessing data, greatly improving the responsiveness of the entire system. This is, therefore, a lot faster than DRAM.
No need for refreshing: DRAM has to be refreshed, whereas SRAM does not, lending itself to easier circuit design and therefore better efficiency.
Higher power efficiency: It is due to its non-refresh operation that SRAM has better power efficiency during active operation.
Larger in physical size: It is also a large memory compared to DRAM since it requires six transistors for each memory cell, which significantly reduces memory density.
Complex architecture: SRAM architecture is complex, incorporating six interlinked transistors functioning as a flip-flop storing one bit, enhancing SRAM stability and speed.

Advantages & Disadvantages of Static RAM

Advantages of Static RAM (SRAM)	Disadvantages of Static RAM (SRAM)
Speed: Significantly faster access times, ideal for high-performance applications like CPU cache.	Power Dependency: Requires a continuous power supply to retain data (volatile).
No Refreshing: Lower latency and simpler memory management (unlike DRAM).	Lower Density: Complex 6-transistor design results in less data per unit area.
Power Efficiency (During Use): Consumes less dynamic power during active operation.	Cost: More expensive to produce due to larger cell size and complex structure.
Data Stability: Flip-flop circuits prevent charge leakage, ensuring consistent data retention while powered.	Vulnerability to Fluctuations: Sudden power disruption leads to total data loss; no backup.

What is DRAM?

DRAM stands for Dynamic Random Access Memory. It is a volatile type of memory that stores each bit of data using a single transistor together with a capacitor. The capacitor holds electrical charge to represent the binary data—charged for ‘1’ and discharged for ‘0’. However, capacitors naturally leak charge over time, which implies that as soon as data is written, the information stored in it will begin to fade away.

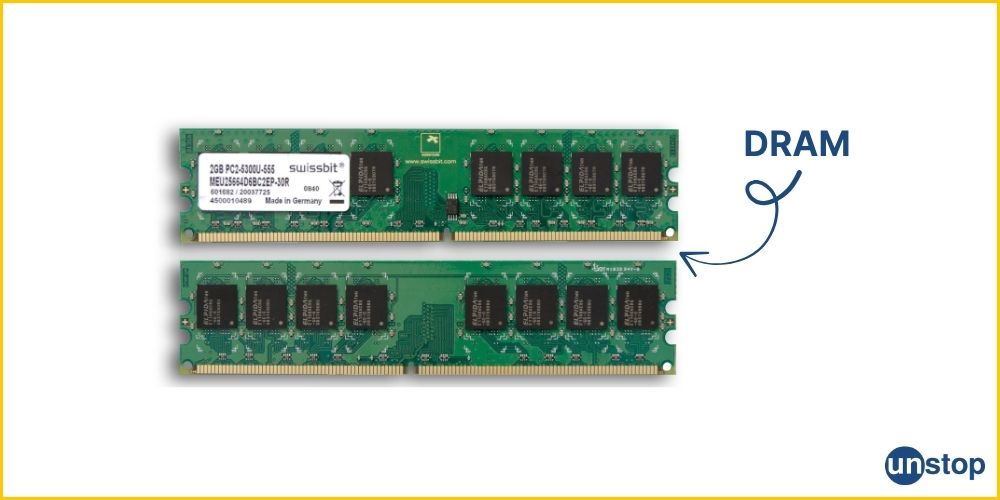

DRAM image

To preserve data integrity, DRAM must, therefore, be refreshed periodically thousands of times each second before it loses the charge completely. This constant refreshing results in added latency and increased power consumption versus SRAM. However, because DRAM cells require only one transistor and one capacitor per bit, they give a much smaller size for higher memory density, thus making DRAM cheaper for a larger memory module.

Characteristics/Features

Volatile memory: DRAM is a volatile memory; therefore, it loses all stored data unless power is maintained. It is useful for temporary storage that is frequently accessed and updated during device operation.

Refresh cycles needed: DRAM refreshes each bit thousands of times a second to retain data. This endows complexity to the control circuitry, which eventually impacts performance.

High memory density: DRAM cells are compact, every cell constituting one transistor and one capacitor for every bit. This compact design hence stacks up DRAM memory into less physical space, a high-capacity memory module.

Less expensive: Because of its simpler structure and higher density, DRAM is cheaper to manufacture than SRAM; hence, for bulk memory requirements, SRAM is the most practical choice.

Simple cell architecture: This makes the manufacturing of DRAM simple. A mass production basis is facilitated, encouraging a large number of DRAMs in the computing system.

Acts as the main system memory: Considering the cost, capacity, and performance balance, DRAM is mainly used as primary memory (RAM) in computers, laptops, and mobile devices.

Advantages & Disadvantages of Dynamic RAM

Advantages	Disadvanatges
Cost-effective: Due to its one-transistor-one-capacitor architecture being simpler than that of SRAM, DRAM can be manufactured very cheaply, making it ideal for systems requiring large memory at a lower price.	Requires Frequent Refreshing: To retain data, DRAM must be refreshed thousands of times per second, complicating memory management and increasing power consumption.
High Storage Density: The tiny cell structure enables the capability to pack more memory into a given chip area, thereby facilitating increased memory capacity in a smaller footprint.	Slower than SRAM: Continuous refreshing and more complicated access methods lead DRAM to be slow in terms of read and write operations compared to SRAM.
Smaller Physical Size per Bit: One transistor and capacitor are used by every cell of DRAM, producing smaller memory cells for much denser chips.	Higher Power Consumption: The continuous refresh cycles consume more power, and in this case, large DRAM modules can struggle with energy efficiency.
Easier Integration for Larger Capacities: Because of high density and low cost, DRAM is very easy for system memory expansion in a cheaper way.	Slightly Higher Latency: Due to its internal refresh mechanism and access delays, DRAM generally has higher latency than SRAM, which can affect time-sensitive applications.

Key Differences Between SRAM and DRAM Explained

Construction

SRAM (Static RAM) employs six transistors for each bit of information, arranged in a flip-flop structure. This provides inherent stability, as well as rapid access, without the need for refreshing. However, that is one of the reasons making SRAM circuitry more massive and exceptionally complicated than DRAM circuitry.

DRAM employs a single transistor and a capacitor to form its cell. The entire structure is simplified by using a single read and write transistor with an external capacitor. However, since the capacitor will discharge its charge, it must be periodically refreshed so that the bit remains valid.

Speed

That is why SRAM is many times faster than DRAM since it is capable of retaining data without interruption and waiting while refresh operations are performed. Consequently, it is ideally used in high-speed applications such as CPU cache.

As far as speed is concerned, DRAM operates more slowly as its refresh cycles have to be completed before each read and write operation can proceed with the operations.

Cost and Density

SRAM is costly because it uses six transistors for every bit while maintaining a large cell size. It has lower memory density, thus constraining the amount of memory on a chip.

By making it more affordable and providing a better memory density, DRAM gets the upper hand and becomes the best choice for the main memory of personal computers and servers, where it needs to be attached in low but at high amounts.

Use Cases

It is usually found in instances where speed is critical and memory usage is limited. Common examples would be CPU caches, registers, and small-scale memory buffers.

It is obvious that DRAM is the main memory (RAM) in modern computing systems. Their high density and lower cost are the reasons for choosing them for the huge amounts of work to be done and the multitasking capability in the devices we use today.

Conclusion

SRAMs and DRAMs are opposites in architecture and operation in the volatile memory family. Both operate on semiconductor principles, but differ significantly in design and functionality. SRAM technology is based on bistable flip-flop circuits and is fast, low-latency, and reliable. However, it comes with a price that is too high and a density that is relatively low for anything but CPU cache and buffer applications, where speed is of the essence.

DRAM is based on capacitor-transistor combinational setups, which lead to low pricing and high density but comparatively slow performance due to the requirement of constant refreshing. Hence, DRAM is used as the main system memory to store large amounts of information at lower costs.

To summarize, SRAMs are well-suited for speed-sensitive applications, while DRAMs are designed for high-capacity applications within limited budgets; hence, systems can strike a balance between performance and storage efficiency.

Frequently Asked Questions (FAQs)

1. Why is SRAM used in cache memory?

SRAM is specifically used as cache memory for its incredibly fast access time and low latency. Unlike DRAM, SRAM does not have a refreshing mechanism, which helps the processor to retrieve or write data almost instantaneously. Thus, the SRAM's utility for CPU caches is due to easy access to data that is often used for maintaining a high system performance. Its stable flip-flop based architecture also ensures that SRAM works well under high-speed operation needs, making it the first choice for L1, L2, and L3 caches.

2. Is DRAM used in cache memory?

No, DRAM (Dynamic Random Access Memory) is generally not used in cache memory. Though DRAM is cheaper and denser than SRAM, it is slower because of the periodic refresh cycles needed to keep data; those refresh cycles add latency unacceptable for the purpose of cache memory with rapid access. Therefore, DRAM is much more appropriate for main memory (system RAM) than speed.

3. What is the difference between cache memory and main memory?

Cache memory is the small, high-speed part of the memory that is situated very near to the CPU cores. It is used to cache all the more frequently used instructions and data to avoid fetching from the slow speeds of main memory. This significantly improves the time required to access the data and helps overall system performance.

Main memory (or RAM), typically made using DRAM, is larger and is used for holding all data and programs that are currently in use. This forms a bridge between the high-speed CPU and other storage devices, making it much slower than cache memory.

4. Does DRAM use capacitors?

Indeed, DRAM utilizes a single capacitor, along with a transistor, for each stored bit of data. The capacitor saves an electric charge to represent data (charged for 1 and discharged for 0), but it dwindles in charge over time. Because of this phenomenon, refreshing is required in DRAM-employing systems, where data is read and rewritten thousands of times per second to restore the charge. This is one key cause underlying the slower and less efficient dynamic storage element as compared to SRAM.

5. Is SRAM a capacitor?

No, SRAM does not use capacitors at all. Each bit of data is stored in a flip-flop circuit composed of six transistors and consumes significantly more power compared to refresh memory. This means that once power gets cut off, it doesn't hold the data; hence, it needs refreshing.

6. Why is SRAM not used as main memory?

Being much more expensive than DRAM, SRAM would be more cost-prohibitive to build in large sizes suitable for general-purpose use. Each bit of SRAM requires six transistors, whereas DRAM requires only one transistor and one capacitor for each bit; this larger design size leads to a larger physical size on the chip. Thus, high-end SRAM, if used for main-memory applications, would have been just as limited in quantity as DRAM is nowadays. Hence, SRAM can only be found in small quantities in high-speed work, such as cache memory, while in all regular applications, lower-cost DRAM serves as main memory.

7. How many capacitors are inside SRAM?

No capacitors are in SRAM. Each bit in SRAM is stored by a flip-flop circuit entirely made from transistors (six on average per bit). The lack of capacitors eliminates the need for refresh cycles, lending SRAM its fast and stable character. In terms of design, efficiency is achieved from the standpoint of speed, but it complicates things and wastes space for SRAM.

8. What is the architecture of SRAM memory?

The architecture of SRAM is based on a six-transistor (6T) configuration for each memory cell. These transistors form a flip-flop circuit that can hold a binary value.

This article was contributed by Johns Joseph, Unstop Intern and Campus Ambassador.
