Reinforcement Learning (RL) is a branch of machine learning that has garnered significant attention due to its ability to learn optimal behaviors through trial and error. In contrast to supervised learning, where the model learns from labeled data, RL involves an agent interacting with an environment and making decisions to maximize cumulative rewards.

By understanding how to adapt to different situations and receive feedback, RL algorithms can solve complex problems, making them ideal for a wide range of real-world applications.

This article delves into the core aspects of Reinforcement Learning, its various algorithms, types, and applications, particularly in robotics.

What Is Reinforcement Learning?

Reinforcement Learning is an area of machine learning where an agent learns to make decisions by interacting with its environment. The agent takes actions, receives feedback in the form of rewards or penalties, and adjusts its behavior to maximize the long-term reward. Thus, the process can be broken down into several components: the agent, the environment, actions, states, and rewards.

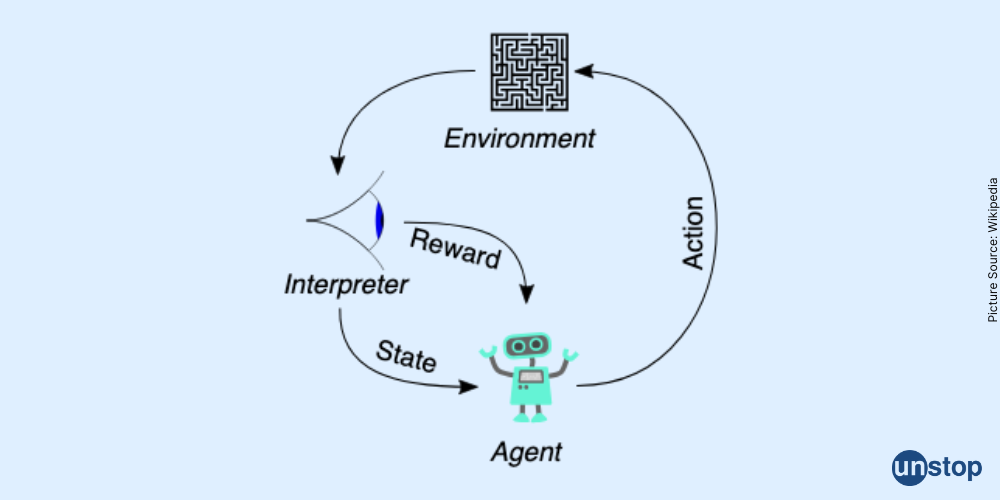

Components of Reinforcement Learning

Agent

The agent is the decision-maker in the RL system. It interacts with the environment by taking actions and learning from the outcomes.

• Purpose: The agent’s goal is to maximize cumulative rewards over time by learning an optimal policy (a strategy for selecting actions).
• Example:
  • In a self-driving car system, the car itself is the agent.
  • In a chess game, the software playing as a participant is the agent.

Environment

The environment is everything external to the agent with which it interacts. It defines the context in which the agent operates, providing feedback based on the agent’s actions.

• Purpose: The environment models the problem the agent is trying to solve and provides the states and rewards.
• Example:
  • For a robot navigating a maze, the maze is the environment.
  • In a stock trading application, the financial market data serves as the environment.

Actions

Actions are the choices available to the agent at any given state. Each action influences the environment and leads to new states and rewards.

• Types of Actions:
  • Discrete: Limited to specific choices (e.g., move left or right).
  • Continuous: Actions vary across a range (e.g., adjusting steering angles).
• Example:
  • In a video game, actions include moving, jumping, or shooting.
  • For a robotic arm, actions might involve specific movements of its joints.

States

A state is a representation of the environment at a particular moment. It provides the agent with the information needed to decide its next action.

• Types of States:
  • Observable: When the agent has full knowledge of the environment’s state.
  • Partially Observable: When the agent can only see part of the environment (e.g., a car using a single camera).
• Example:
  • In chess, the arrangement of pieces on the board is the current state.
  • In a weather prediction system, the current temperature, pressure, and humidity are the state.

Rewards

Rewards are numerical values the environment provides to the agent after it takes an action. They indicate how good or bad the action was in achieving the desired outcome.

• Purpose: The reward signals guide the agent to learn and improve its decision-making.
• Example:
  • In a game, gaining points or losing lives serves as rewards.
  • For an energy-efficient HVAC system, a lower energy consumption score could be a reward.

Interaction Process

Step 1: The agent observes the current state of the environment.

Step 2: Based on the observed state, the agent takes an action.

Step 3: The environment transitions to a new state as a result of the action and provides a reward.

Step 4: The agent updates its policy using the reward and transitions to the next state.

Step 5: The cycle continues until the agent learns an optimal policy or the task ends.

By navigating through a series of states and taking actions that lead to the highest rewards, the agent continuously refines its strategy. Unlike traditional machine learning models that rely on labeled data, RL focuses on learning from experience, making it suitable for tasks that require decision-making in dynamic environments.

Reinforcement Learning Algorithms

There are several key algorithms in Reinforcement Learning, each designed to optimize the agent's decision-making process. Some of the widely used RL algorithms include:

Q-learning

A model-free algorithm where the agent learns the value of actions in specific states. It uses a Q-table to store the expected future rewards and updates the Q-values iteratively.

Example:

Imagine a robot navigating a maze to find a treasure. The maze has various paths with rewards (positive for the treasure, negative for walls or traps).

• The robot updates its Q-values in a Q-table based on trial and error.
• Over multiple episodes, it learns the best path by associating actions (e.g., move left or right) with rewards.
• Eventually, the robot consistently chooses the shortest and safest path to the treasure.

Deep Q-Networks (DQN)

This is an extension of Q-learning that incorporates deep learning to handle large state spaces, which is particularly useful in high-dimensional problems such as video games.

Example:

Consider playing the video game Atari Breakout.

• The game screen (pixels) represents a high-dimensional state space.
• A DQN agent processes the screen input through a convolutional neural network to learn Q-values for actions (e.g., moving the paddle left or right).
• Over time, the agent learns strategies to break bricks more effectively.

Policy Gradient Methods

These algorithms focus on directly learning the policy (a mapping from states to actions) rather than estimating value functions. They are ideal for continuous action spaces.

Example:

A robotic arm in a factory learns to pick and place objects of varying shapes and sizes.

• The arm continuously adjusts its movement (e.g., angles of joints) to optimize the placement task.
• Policy gradient methods help the robot learn smooth, precise control policies for these continuous actions.

Actor-Critic Methods

These combine the benefits of value-based and policy-based methods. The "actor" learns the policy, while the "critic" evaluates the action taken by the actor.

Example:

In a self-driving car scenario,

• The actor suggests actions like accelerating or turning.
• The critic evaluates these actions based on their alignment with safety and efficiency goals.
• Together, they refine the driving policy over time.

Monte Carlo Methods

These methods estimate the value of a policy by averaging the returns from several episodes, useful when the model does not have a model of the environment.

Example

A casino AI learns to play blackjack optimally by simulating numerous games.

• After each game, it calculates the total reward (win/loss).
• The AI updates its strategy by averaging rewards over multiple simulations, gradually improving its play style.

Types of Reinforcement Learning

Reinforcement Learning (RL) can be categorized into several types based on how the agent interacts with the environment, learns from data, and handles the action space. Below is a detailed explanation of the key types, including examples and use cases:

1. Model-Free Reinforcement Learning

Model-free RL focuses on learning directly from the environment through trial and error without constructing a predictive model of the environment's dynamics. The agent takes actions, observes rewards, and updates its knowledge to improve performance over time.

Key Methods

• Q-Learning: A value-based approach where the agent learns a Q-value (quality) function that estimates the maximum expected future rewards for taking an action in a given state.
• Policy Gradient: A policy-based method where the agent directly learns the policy function, mapping states to actions without estimating value functions.

Real-World Example

In a game-playing context, a Q-learning agent learns optimal moves in a board game by repeatedly playing and adjusting its actions based on rewards (e.g., winning points).

Use Case

Model-free RL is widely used in autonomous drone navigation, where the drone learns to navigate through unknown terrains without a predefined map.

2. Model-Based Reinforcement Learning

In model-based RL, the agent builds an internal model of the environment to predict how its actions will affect future states and rewards. This predictive capability allows for more efficient planning and decision-making.

Key Methods

• Dynamic Programming: Uses a known model of the environment to compute policies and value functions.
• Dyna-Q: Combines model-free learning with planning by simulating experiences using the internal model.

Real-World Example

In robotics, model-based RL enables robotic arms to simulate how objects will move when pushed or lifted, reducing errors before physical interaction.

Use Case

It is applied in supply chain optimization, where a model predicts inventory levels and simulates future demands to improve ordering strategies.

3. On-Policy vs. Off-Policy Learning

This categorization is based on whether the agent learns from the policy it is currently following or from a different policy.

On-Policy Learning

The agent learns using data collected while following its current policy. This ensures consistent learning but may limit exploration.

• Example: SARSA (State-Action-Reward-State-Action), which updates values based on the current policy’s actions.
• Use Case: Used in dynamic environments like traffic light control, where actions need to align with the current policy to adapt to real-time changes.

Off-Policy Learning

The agent learns from a different policy than the one it is executing, allowing for more flexibility and exploration.

• Example: Q-Learning, where the agent updates values based on the optimal action, not necessarily the one it performed.
• Use Case: Commonly used in financial trading, where agents simulate different trading strategies to maximize returns.

4. Continuous vs. Discrete Action Spaces

The classification here is based on the nature of the actions the agent can take.

Discrete Action Spaces

Actions are limited to a finite set of choices.

• Example: In a grid-world simulation, actions might include moving up, down, left, or right.
• Use Case: Ideal for applications like chess-playing AI, where moves are limited to specific pieces and directions.

Continuous Action Spaces

Actions can take any value within a range, providing finer control and precision.

• Example: In autonomous driving, the steering angle and acceleration are continuous variables, allowing smooth adjustments.
• Use Case: Used in robotic arm control to manipulate delicate objects, such as assembling small parts or performing surgeries.

Applications of Reinforcement Learning

Reinforcement Learning (RL) has transformative potential across various industries, where decision-making and adaptability are crucial. Here is a detailed look at its diverse applications:

1. Autonomous Vehicles

Reinforcement Learning has been instrumental in the development of self-driving cars. RL enables autonomous vehicles to navigate through complex environments by learning optimal driving strategies.

• How It Works: Using sensors, cameras, and LiDAR, the vehicle collects real-time data from its surroundings. An RL agent processes this data, selects appropriate actions (e.g., steering, braking, or accelerating), and receives feedback based on safety and efficiency.
• Real-World Example: Companies like Waymo and Tesla utilize RL algorithms for path planning, collision avoidance, and improving driving strategies in varied traffic conditions. For instance, RL helps vehicles navigate roundabouts by learning when to yield or proceed confidently, balancing safety with speed.

2. Game Playing

Reinforcement Learning has revolutionized the domain of game playing, showcasing its ability to handle strategic, complex, and dynamic scenarios.

• How It Works: RL agents learn game strategies by simulating millions of games, refining their performance over time.
• Real-World Example: AlphaGo, developed by DeepMind, defeated world champions in the ancient game of Go by leveraging RL and Monte Carlo Tree Search. Similarly, RL has been applied in video games like StarCraft II, where agents outperformed professional players by mastering multi-agent coordination and real-time strategy.

3. Healthcare

Reinforcement Learning plays a critical role in advancing healthcare by improving personalized treatment plans and optimizing operational efficiency.

• How It Works: RL algorithms analyze patient data, predict outcomes, and recommend treatment plans tailored to individual needs.
• Real-World Example: Researchers have developed RL systems to optimize chemotherapy dosing schedules for cancer patients, ensuring maximum efficacy with minimal side effects. Another example includes managing hospital bed allocation and scheduling surgeries to minimize wait times and resource wastage.

4. Finance

In the financial industry, RL is used to design adaptive models that respond to market dynamics and optimize decision-making processes.

• How It Works: RL agents analyze historical and real-time market data to identify profitable trading strategies, manage portfolios, and assess risks.
• Real-World Example: RL-based algorithms are widely adopted in algorithmic trading. JPMorgan Chase, for instance, employs RL for executing trades in high-frequency trading scenarios. RL agents can learn patterns in stock prices and decide when to buy, sell, or hold stocks, maximizing returns while mitigating risks.

5. Recommendation Systems

Reinforcement Learning enhances the effectiveness of recommendation systems by learning and adapting to user preferences over time.

• How It Works: RL agents optimize content delivery by analyzing user interactions, predicting preferences, and dynamically updating recommendations.
• Real-World Example: Platforms like Netflix and YouTube use RL to recommend movies or videos. By analyzing watch history and engagement metrics, RL ensures that suggested content aligns with user interests, improving customer satisfaction and platform retention rates.

Reinforcement Learning in Robotics

Robotics has greatly benefited from Reinforcement Learning, where robots learn complex tasks like grasping, navigation, and manipulation through RL techniques. RL algorithms enable robots to improve their performance over time by interacting with their environment, receiving feedback, and refining their movements.

In real-world applications, robots are often faced with unpredictable environments, which makes RL particularly suitable for tasks like path planning, object handling, and even collaborative multi-robot systems. A key challenge in robotic RL is the exploration-exploitation trade-off: the balance between exploring new strategies and exploiting known effective ones. However, with advancements in algorithms and hardware, RL is helping robots learn increasingly sophisticated tasks autonomously.

Conclusion

Reinforcement Learning represents a revolutionary advancement in the field of artificial intelligence, offering powerful techniques for autonomous decision-making in dynamic environments. From game-playing and autonomous vehicles to robotics and healthcare, RL has demonstrated its ability to tackle many real-world challenges.

As the field continues to evolve, future advancements in RL algorithms and applications will open up new possibilities for intelligent systems capable of learning and adapting autonomously.

Frequently Asked Questions (FAQs)

Q1. What is the main difference between Reinforcement Learning and supervised learning?

Reinforcement Learning focuses on learning from interactions with the environment and feedback (rewards or penalties), while supervised learning relies on labeled datasets to train models.

Q2. What are the key components of a Reinforcement Learning system?

The main components are the agent, the environment, actions, states, and rewards.

Q3. What is the exploration-exploitation trade-off in RL?

The exploration-exploitation trade-off refers to the dilemma of whether an agent should explore new actions to discover potentially better rewards or exploit known actions that have yielded good results.

Q4. How is Reinforcement Learning used in robotics?

RL is used in robotics for tasks such as navigation, manipulation, and decision-making, where robots learn through trial and error to improve their performance in real-world tasks.

Q5. What is the difference between model-free and model-based RL?

Model-free RL learns directly from interaction without building an internal model of the environment, while model-based RL constructs a model of the environment to simulate outcomes and plan actions.
